Dec, 11 2023

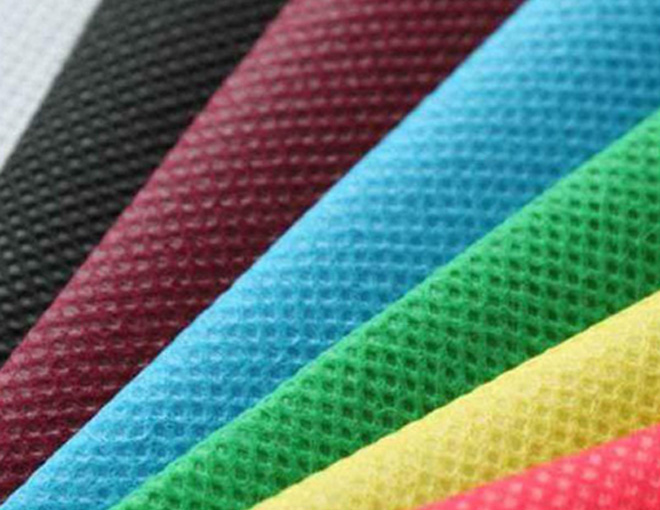

Industrial PET spunbond non-woven fabric has excellent physical and mechanical properties in a wide temperature range. The long-term use temperature can reach 120°C. The electrical insulation of the polyester spunbond nonwoven fabric is also excellent. Even at high temperatures and high frequencies, its electrical properties are still good. As one of the professional needle punched non-woven fabric manufacturers in China, Canuxi provides polyester spunbond nonwoven fabrics at great prices with consistently high quality. Wide selection of pet nonwoven fabric. Feel free to contact us at any time!
Specification of Industrial Pet Spunbond Non-Woven Fabric | |||||
Type | Weight/gsm | Thickness (0.4kpa)mm | Tensile strength (MC/CD)%N/5cm | Elongation at max tensile strength(MD/CD)% | Shrinkage (MD/CD)% |
| NB-85 | 85 | 0.8 | 290/180 | 25 | 5.0/-4.5 |
| NB-100 | 100 | 0.92 | 320/220 | 30 | 4.5/-4.5 |
| NB-120 | 120 | 1.1 | 380/280 | 30 | 2.0/-2.0 |
| NB-140 | 140 | 1.22 | 460/360 | 30 | 2.0/-2.0 |
| NB-150 | 150 | 1.28 | 485/380 | 30 | 2.0/-2.0 |
| NB-160 | 160 | 1.34 | 520/420 | 30 | 1.0/-1.0 |
| NB-180 | 180 | 1.44 | 580/480 | 32 | 0.5/-0.5 |
| NB-200 | 200 | 1.52 | 660/560 | 35 | 0.5/-0.5 |
| NB-220 | 220 | 1.6 | 710/600 | 35 | 0.5/-0.5 |
| NB-250 | 250 | 1.72 | 840/720 | 35 | 0.5/-0.5 |

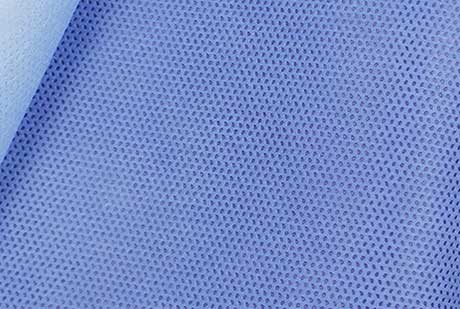

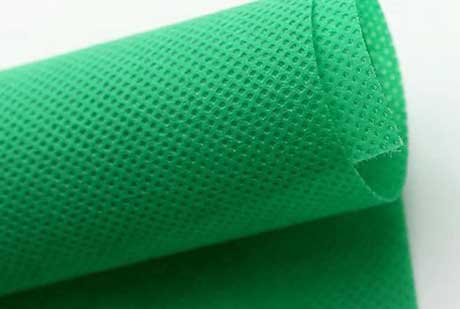

PET nonwoven fabric is a water-repellent non-woven fabric products, and the water-repellent properties of this series pet spunbond non woven fabric are varied depending on the corresponding gram weight. The water droplets will slide directly off the surface of polyester spunbond fabric.
Because of its high melting point, pet spunbond non woven fabric can provide stable performances for environments where temperature resistance is required. Thus, the polyester spunbond nonwoven fabric has been widely used in heat transfer printing, transmission oil filtration, and some composite materials that require high temperature resistance.
This non-woven polyester fabric is a filament non-woven fabric second only to nylon spun-bond non-woven fabric. With features of excellent strength, good air permeability, tensile and tear resistance, and anti-aging properties, the pet nonwoven fabric have been used by more and more people in various fields.
There are many different types of industrial polyester spunbond nonwoven fabrics, which can be used in a variety of different industrial scenarios. For example, industrial polyester spunbond nonwoven fabric can be used as a grinder processing filter cloth. By using filter cloth paper to filter impurities and metal chips, it is very simple and easy to operate, and also improves the cleanliness of the grinding fluid.
PET spunbond nonwoven fabric is a type of industrial non woven fabric that is made from polyester spunbond fabric. The production process of this type of fabric involves several steps, including extrusion, spinning, web formation, and bonding.
Extrusion is the first step in the production process of PET spunbond non woven fabric. This process involves melting the polyester chips at high temperatures and then extruding them through small holes to create filaments. These filaments are then cooled and solidified.
The next step is spinning, which involves taking the filaments and spinning them into a ribbon-like form. This ribbon is then fed onto a conveyor belt where it is formed into a web.
Web formation is the third step in the production process. During this step, the ribbon is formed into a web by laying it down on a conveyor belt where it is stretched and flattened. The web is then fed into a bonding machine where it is bonded together.
Bonding is the final step in the production process of polyester spunbond nonwoven fabric. During this step, the web is bonded together using a process known as needle punching. This process involves passing the web through a series of needles that punch it together, creating a strong, durable fabric.
Overall, the production process of PET spunbond nonwoven fabric is complex and involves several steps. This type of fabric is commonly used for industrial applications due to its strength and durability, and is produced by a variety of needle punched non woven fabric manufacturers around the world.
Industrial Needle Punched PET polyester spunbond fabric is versatile and widely used in various industries due to its excellent physical and mechanical properties. Some common applications include:
1. Geotextiles: erosion control, soil stabilization, and drainage systems.
2. Automotive: carpet backing, insulation, soundproofing, and trunk liners.
3. Filtration: air and liquid filtration systems, dust collection bags, and HVAC filters.
4. Construction: housewrap, roofing underlayment, and wall coverings.
5. Furniture and bedding: upholstery, mattress ticking, and cushioning.
6. Packaging: cushioning material, protective wraps, and interlining.
7. Agriculture: crop cover, weed control, and greenhouse shading.
8. Medical and personal care: surgical gowns, face masks, wound dressings, and diapers.
These applications demonstrate the versatility and reliability of Industrial Needle Punched PET polyester spunbond nonwoven fabric in various industries.
Main application of needle punch nonwoven fabric: filtration material, fold filter cartridge and filter core.
The bituminous roofing felts with it possesses excellent water and heat resistance, soft with low temperature, and anti-aging can fit deformation of a large building and vibrating environments.
Using life of polyester spunbond nonwoven fabric is 10 times more than general bituminous roofing felts now.
